LED節能日光燈的詳細描述：

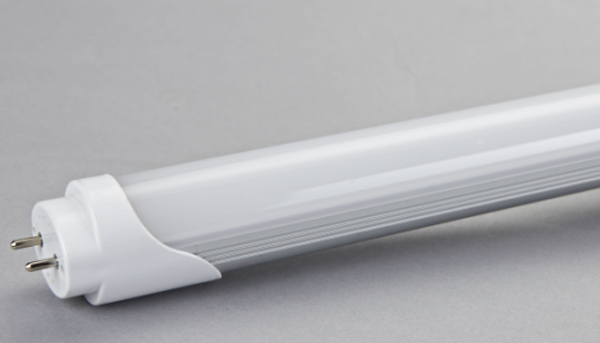

LED熒光燈fluorescent lamp

商http://www.fssuifeng.cn 品技術參數product's technical parameters

●輸入電壓input voltage：85-265V AC、50-60Hz

●直徑diameter：T5、T8（optional）

●功率power：7W、10W、15W、18W、20W（optional）

●外型尺度overall dimension：600mm/900mm/1200mm（可選optional）

●光通量luminous flux：200Lm-2800Lm（可選optional）

●PC罩pc cover：條紋、乳白、通明（多種類型可選）Stripe, milky white, transparent (multiple types optional)

●LED數量number：96~288PCS 3528

●LED標準：高亮度Specification: high brightnessSMD/3528；3.0-3.4V、20mA

●LED單芯片亮度Single chipbrightness：≥6 Lm

●功率因數Power factor(PF)：≥0.95

●LED光通量(Ø) luminous flux：≥85Lm/W

●有關色溫(CCT)correlated colour temperature：純白pure white：5000~5500K

                        暖色warm color：3000~3500K

                        冷白cool white：6000~6500K

●顯色指數(CRI)Color Rendering Index：純白pure white Ra≥70、暖色warm color Ra≥60

●平均光束角averageBeam Angle：120度120 degree

●作業溫度working temperature：-5-45度degree

●作業濕度working humidity：10-70%RH

●運用壽數useful time：2000~50000Hrs（與運用環境有關）(and using environment relevant)

商品特色Product features

1、 功率小、低壓安全、節能環保; Power is small, low-voltage safety, energy conservation and environmental protection;

1、2、散熱性好，壽數更長：純鋁的散熱器，敏捷傳導光源熱能，有用延伸光源運用壽數；Cooling sex good, longer life: pure aluminum radiator, rapid transmission light source heat source, prolong service life;

1、a、選用貼片式LED作為光源，比插件LED壽數更長

1、b、鋁基板作為LED散熱PCB，比FR4原料PCB散熱好數倍。

1、c、高導熱系數鋁外殼作為散熱器，比PC外殼導熱好數倍

1、3、抗氧化：鋁化學功能安穩，即便是高溫下也很難氧化，更不容易疏松墜落，變形歪曲；

1、4、防眩：燈具配上優質防眩燈罩發明杰出的光環境；

1、5、裝置方法：人性化結構設計，裝置輕松簡便。

1、6、節能：

1、a、比傳統日光燈節能50%，比白熾燈節能90%；

1、b、18W LED日光燈相當于40W傳統日光燈火通量，相當于150W白熾燈火通量。

1、c、一樣光通量的條件下，LED有用照度是傳統日光燈的一倍。（緣由：LED為單方向發光，傳統日光燈為多方向發光）

a、LED by patch type As the sources，than Plugin LED Longer life

b、Aluminum plate as LED cooling PCB，than FR4 material PCB Heat dissipation good many times.

c、High thermal conductivityAluminum shell as a radiator,Than PC shell Thermal good several times

3、antioxidation：Aluminum chemical stable performance，Even high temperatures also difficult to oxidation

，Less easy to loose drop，distorted；

4、Anti-glare：Lamps and lanterns configuration in high quality Anti-glareLamp ShadeTo create the good light environment；

5、Installation: humanization structure design, installation easy and convenient.6、energy-saving：

a、Energy than traditional fluorescent lamp 50%,Energy than incandescent bulbs 90%;

b、18W LED fluorescent lamp is equivalent to 40 w traditional fluorescent lamp luminous flux，Equivalent to150W incandescent lampluminous flux。

c、The same luminous flux conditions，LED effective illuminationisTraditional fluorescent lamp one times。(reason: LED to a single direction glow,Traditional fluorescent lamp which is direction shine)7、環保與安全：Environmental protection and safety

運用鋁合金與PC塑料組件，不含汞等有毒物質，可回收利用率98.5%以上。對環境不會形成損害。

Use plastic components, aluminum alloy and PC,Contains no mercury and other toxic substances,Can recycling 98.5% above.Without any harm to the environment.

8、內置電源：Built-in power

選用阻隔電源計劃，安全性更高。Using isolated power solutions,Safety is higher.

9、個性化挑選：Personalizedoptions

a、透光罩可選：通明條紋（透光率高達90%）或擴光罩（光線柔軟，不扎眼、透光率高達80%）；

Pervious to light cover optional：Transparent stripe (euphotic rate as high as 90%) Or enlarge mask (the light is downy, not dazzling, euphotic rate reaches as high as 80%);

b、色溫可選：暖白、天然白、冷白color temperatureoptional:Warm white, natural white, cold white

商品應用Product application

•徹底代替傳統日光燈管；Completely replace Traditional fluorescent tubes

•辦公樓、商場、超市、校園、醫院、酒店、停車場、城市地下通道、工廠車間、市政工程、家庭等各個照明范疇。Office buildings, shopping mall, supermarket, school, hospital, hotel, parking lot, urban underground passage, factory workshop, municipal engineering, family and other various lighting field.
